Installation Manual ST2021
Skriv ut
Skapad av: Ricardo del del Pozo
Ändrad den: Tis, 10 Okt, 2023 vid 9:04 F.M.
NOTE: Camera Height

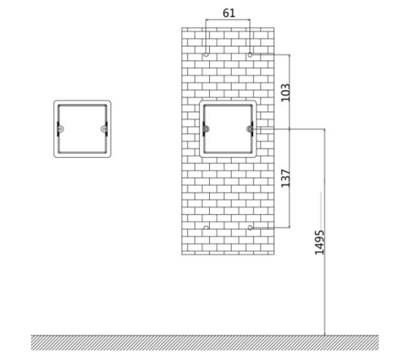

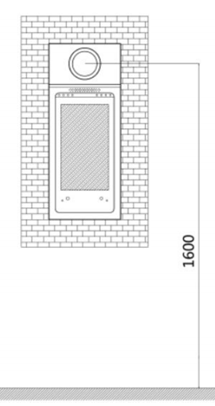

In order to achieve optimal performance and coverage, it is advised to mount the camera at a specific height. This height is calculated by measuring 1495mm from the center point of the camera installation. As a result, the camera itself will be positioned at a height of 1600mm from the ground or reference point. This recommendation takes into consideration factors such as angle, perspective, and field of view, ensuring that the camera captures the desired area effectively and accurately.
Ricardo is the author of this solution article.
